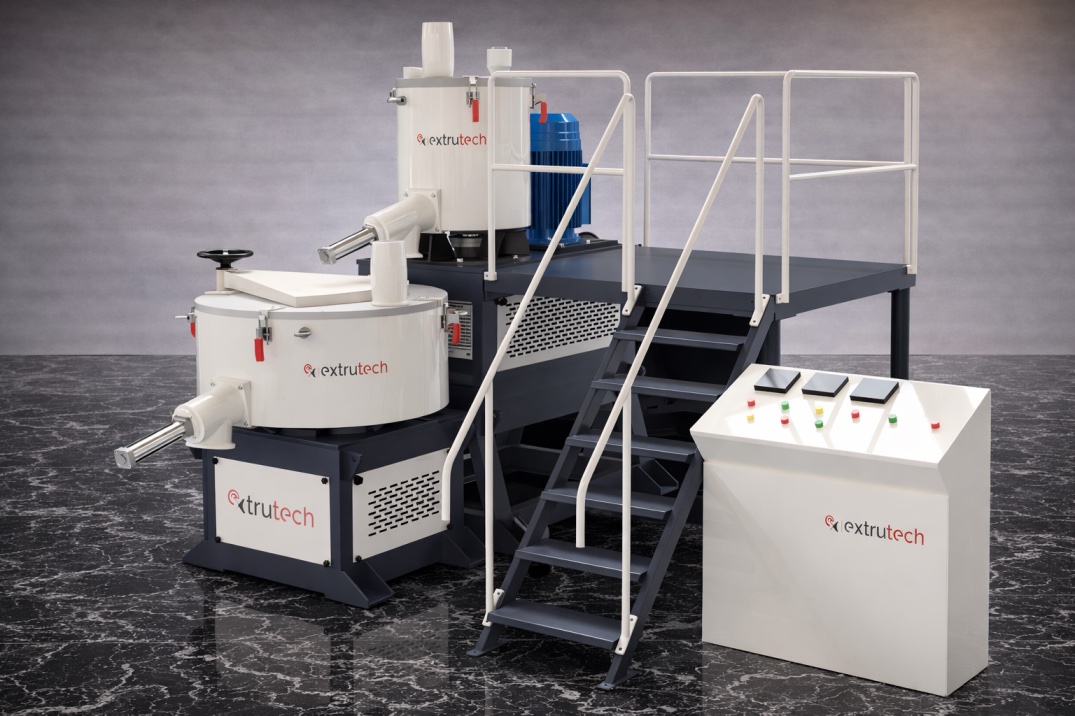

High-Speed Heater-Cooler Mixer
Unlock the full potential of your materials with our state-of-the-art Compounding Extruder Machines. Whether you need the robust simplicity of a single-screw or the intricate mixing power of a twin-screw, our systems deliver unparalleled precision and consistency for every batch. Transform your production of masterbatches, filled compounds, and custom polymers, and turn your vision into a high-quality, market-ready product.
Heater Mixers
In our Heater Mixers, the heat generated by friction is utilized to mix materials. The mixing tool mixes rapidly and uniformly to yield a homogeneous compounded product. These high-speed mixers are perfect for solid, liquid, and pasty components.
Cooler Mixers
Key Features
Designed with the operator in mind for ease of use, durability, and real-time control.
Vessel & Material Handling
Stainless steel mixing vessel for corrosion and abrasion resistance
Vessel and discharge plate high gloss polished on the inside
Design ensures no deposits, crusts, or pockets of colour

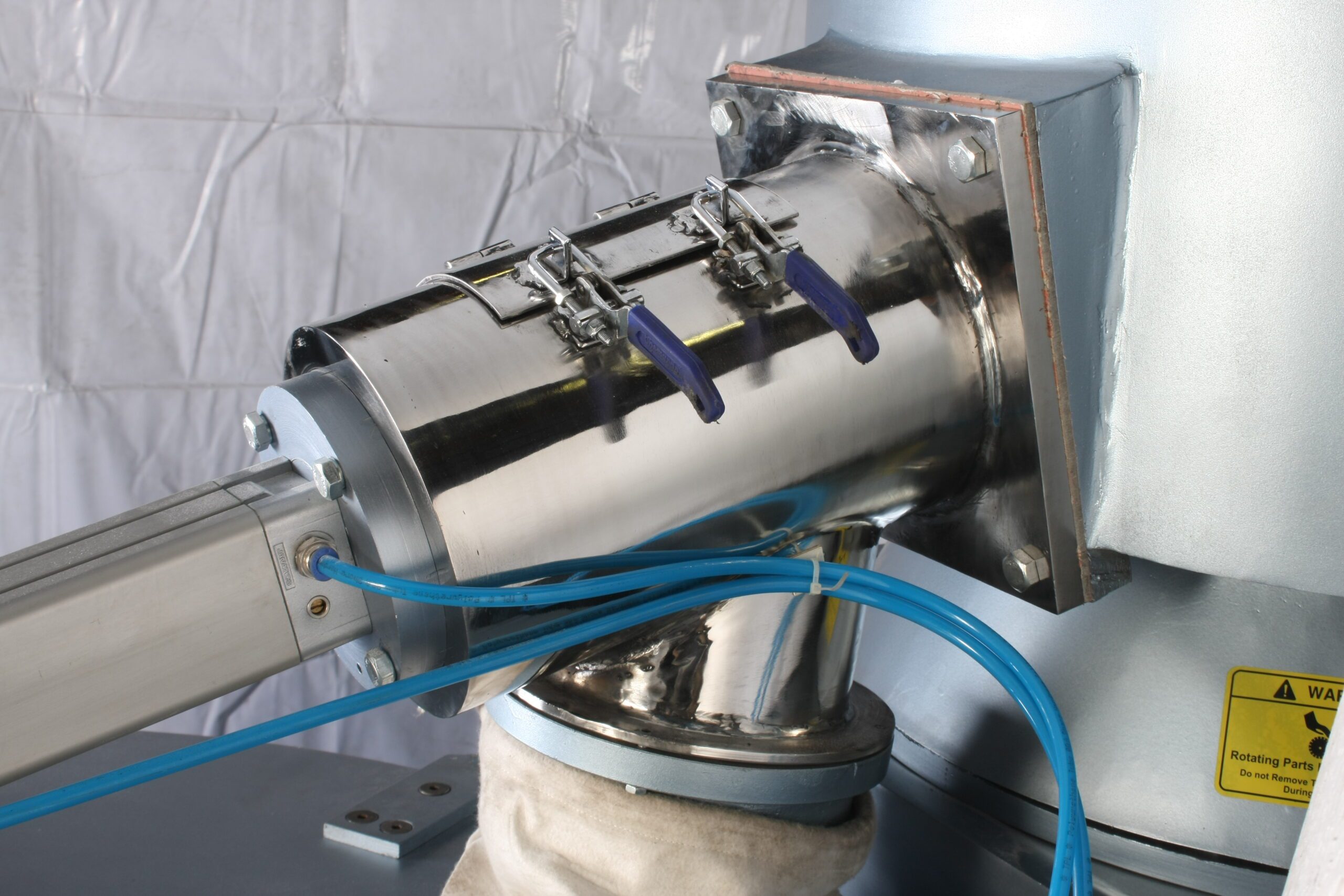

Rapid and complete discharge of the mixed material
Pneuma Seal Housing Design Flow Deflector to avoid material infiltration to bearings
Mixing Tools & Performance

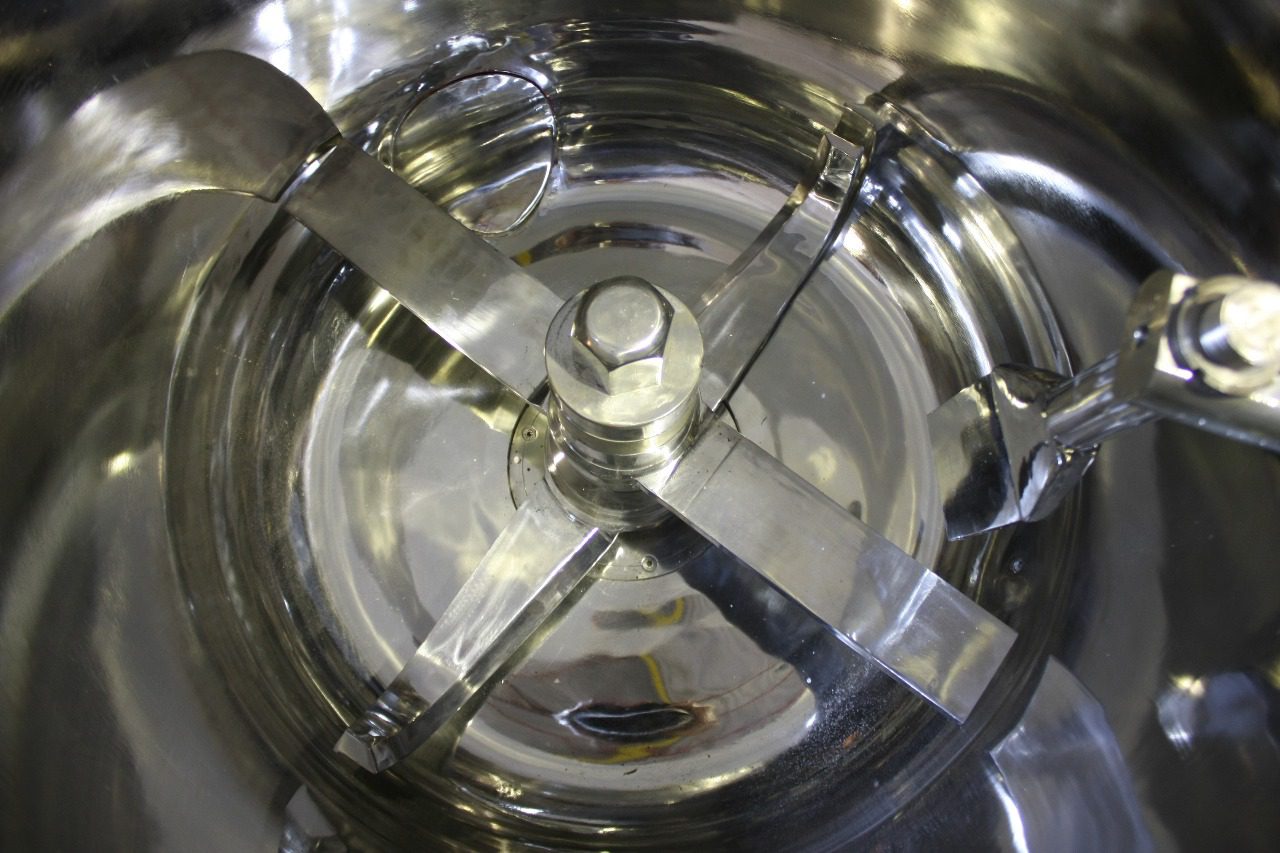

Mixing tools are self-purging, adjustable in height, and have a simple design
Made from stainless steel, thoroughly hardened and buffed
Easy, rapid removal and refitting of tools
Ensures homogeneous mixtures and optimum dispersion
Achieves up to 5 batches per hour for hot mixing
Control & Efficiency
Temperature Sensor in Thermo well socket for accurate measurement
Dual speed motor for higher batch production and lower power consumption
Variable tool speed for adaptability
Freely programmable controls for process adaptability and constant high quality
Heating & Cooling System
Twin jacket for both heating or cooling functions
Forced circulation of cooling water in the cooler vessel
Optimum dimensions and intensive cooling of the cooling surface
Cooling process is synchronized in step with the heated mixer
Key Applications
Engineered for a diverse range of mixing and blending needs across multiple industries.
PVC preparations including E-PVC
Mixing ABS powder with filler & auxiliary components
Preparation of rubber mixtures
Lubricants or pigment on plastic powder basis
Foodstuff and medical powder application
Cosmetic and ceramic product compound
Mineral application
Preparation of different batches with stabilizers
Masterbatch application
Technical Specifications
| MODEL | ET 10 / 40 | ET 50 / 150 | ET 130 / 400 | ET 200 / 400 | ET 250 / 600 | ET 350 / 1000 | ET 500 / 1500 | ET 750 / 2500 | ET 1000 / 3000 |
| Capacity KG/Batch | 3 | 15 | 35–40 | 65–70 | 85–90 | 115–120 | 185–200 | 285–300 | 400 |
| KG/HR | 15 | 60–75 | 160–200 | 280–350 | 360–450 | 480–600 | 800–1000 | 1200–1500 | 1600–2000 |
| MOTOR (HM) KW | 3.7 | 7.5 | R15/S18.5 | R30/S37.5 | R37.5/S45 | R56/S75 | 110 (R/S) | 132 (R/S) | 200 (R/S) |
| MOTOR (CM) KW | 0.75 | 1.5 | 3.7 | 3.7 | 5.5 | 5.5 | 11 | 26 | 37 |
