Downstream Equipment for Pipe Extrusion

Extrutech offers a complete range of downstream equipment to complement our pipe extrusion lines. From initial sizing and cooling to final cutting and handling, each machine is designed for precision, reliability, and seamless integration.

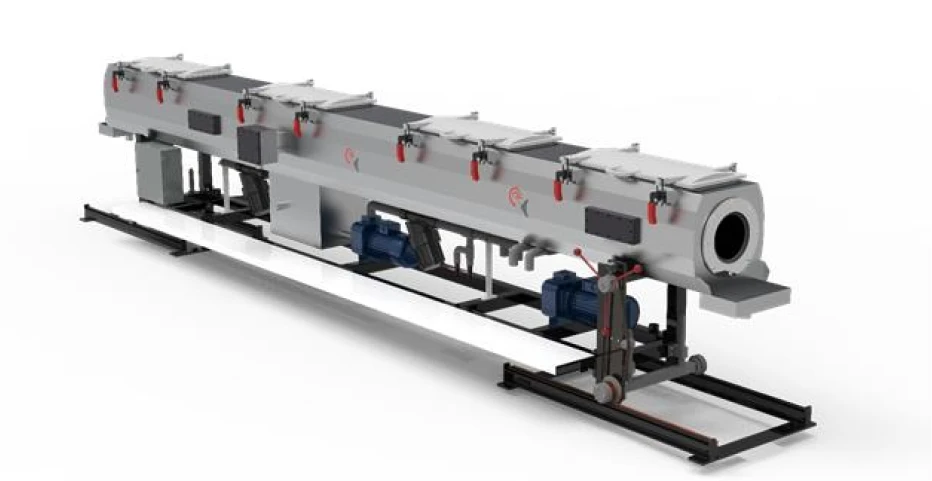

Vacuum & Spray Cooling Tanks

Positioned after the extruder, our vacuum sizing and spray cooling tanks are essential for achieving precise pipe dimensions and optimal surface quality. The controlled environment increases process accuracy and production capabilities for pipe diameters from 16mm to 630mm.

Advantages Section

Advantages

✔ Standard long-lasting air-controlled valves, suitable for contaminated water
✔ New water level control, not sensitive for contaminated water
✔ Rigid and sturdy stainless-steel construction
✔ Cost reduction because of quick tool change
✔ Stable vacuum and efficient cooling
✔ Highly efficient electronic motors
✔ Stable cool water temperature control
✔ Quick start up as seals maintain vacuum at out-of-shape pipe

Vacuum Sizing Tank Specification

Model Unit ETVST - 110 ETVST - 200 ETVST - 250 ETVST - 315 ETVST - 450 ETVST- 630
Pipe Range MM 20-110 20-200 50-250 50-315 75-450 110-630
Cooling Length MTR 4/6/8/9 4/6/8 6/8 6/8 6/8 8
No.of Chamber - 1 1 2 2 2 2

Spray Cooling Tank Specification

Model Unit ETCT - 110 ETCT - 200 ETCT - 250 ETCT - 315 ETCT - 450 ETCT - 630
Pipe Range MM 20-110 20-200 50-250 50-315 75-450 110-630
Cooling Length MTR 4/6/8 4/6/8 6/8 6/8 6/8 8
No.of Chamber - 1 1 1 1 1 1

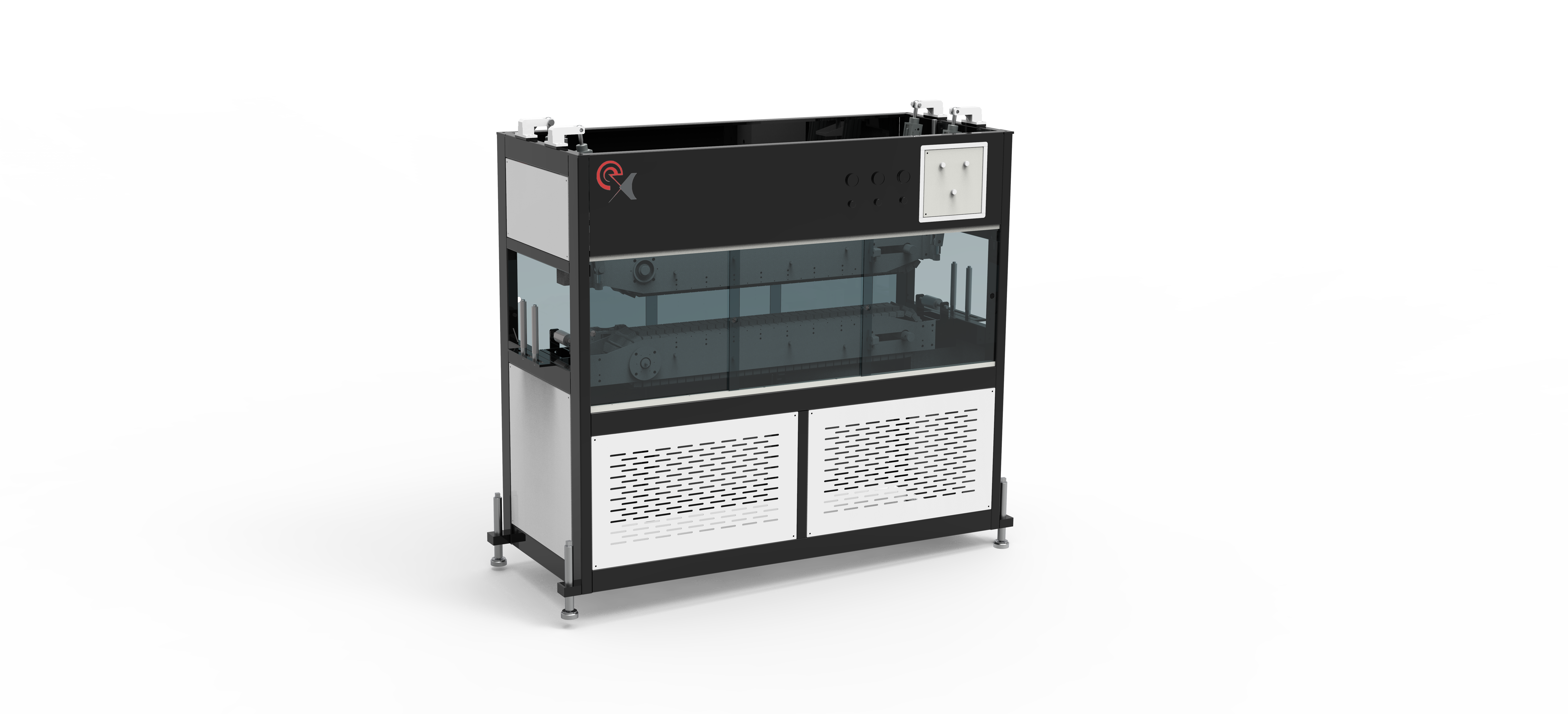

Traction Unit (Haul-off)

Our robust traction units provide consistent and reliable pulling force, crucial for maintaining pipe dimensions and surface quality. Available in multiple track configurations with servo motor control for precision.

Advantages Section

Advantages

✔ Rigid heavy-duty MS structure
✔ Rubber pad made from imported rubber
✔ Pneumatically operated
✔ Servo base panel control
✔ HMI-PLC Operated
✔ Specially Thick thin Arrangement for Column pipe & Agri pipe
✔ High Gripping Pad design, available in Two, Four & Six track

Traction Unit Specification

Model Unit ETHO -50 ETHO - 110 ETHO-200 ETHO-315 ETH0-400 ETHO-630
Pipe Range MM 20-50 20-110 20-200 110-315 110-400 200-630
Track no 2 2 2 4 4 6
Motor control - Gear Operated Gear Operated Servo Motor Servo Motor Servo Motor Servo Motor

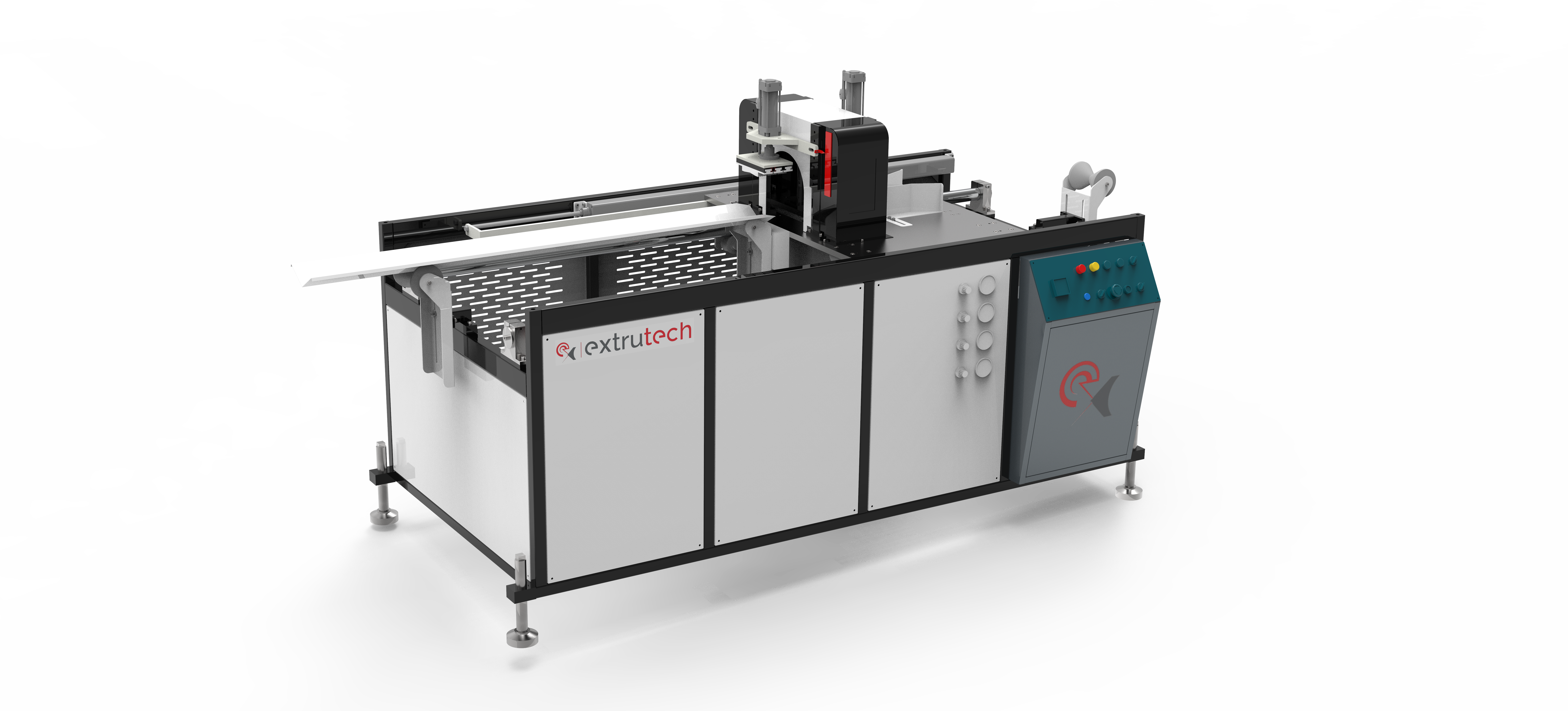

Cutting Solutions

The ECM is an automatic cutting machine for plastic pipes from 16 to 630 mm. The advanced technology ensures uniform, dust-free cutting and is relatively insensitive to pipe shape irregularities. Tool movement and carriage are controlled by a servo drive for maximum precision.

Advantages Section

Advantages

✔ Multiple cutting lengths in one line
✔ Improved lifetime of cutting tools because of optimal cutting speed
✔ Faster movement towards the pipe which results in faster cutting
✔ Most parameter settings on touchscreen
✔ Excellent cut for any socketing device
✔ Robust design for high-speed lines and special PVC/high-filled materials

Tube Cutting Unit Model Specification

Model Unit ETCM - 110 ETCM - 200 ETCM - 250 ETCM - 315 ETCM - 110/2 ETCM- 200/2
Pipe Range MM 20-110 20-200 50-250 90-315 20-110 20-200
Cutting Speed(MAX) mtrs./min 20 12 10 6 20 12
Clamping From - Top Top Top Side/Top Top Top

Chipless Cutter Specification

wpDataTable with provided ID not found!

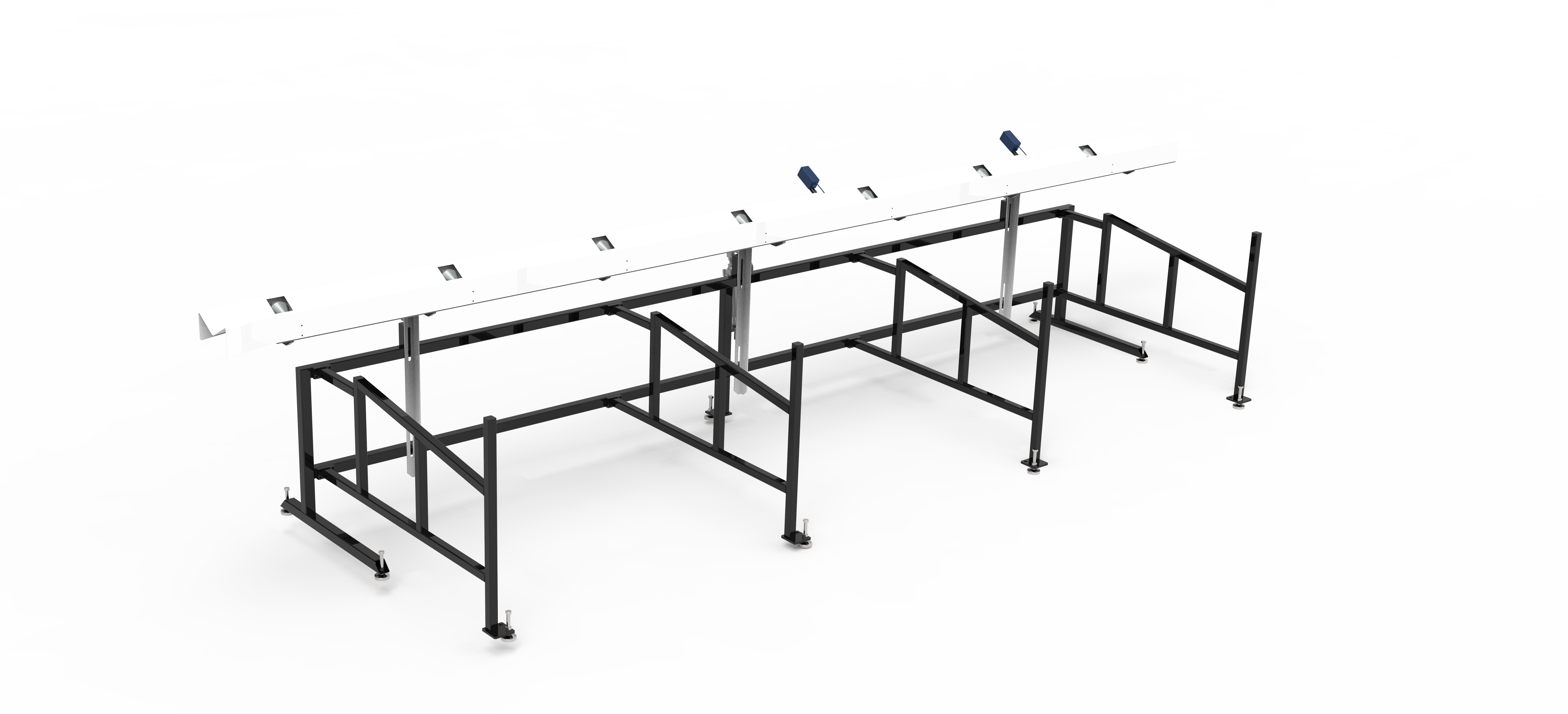

Tilting Unit

The final step in the production line, our pneumatic tilting units ensure gentle handling and stacking of finished pipes, ready for dispatch. Dual limit switches coordinate with the cutter for seamless, automated operation.

Advantages Section

Advantages

✔ Rigid heavy-duty MS structure
✔ Rubber pad made from imported rubber
✔ Pneumatically operated
✔ The operation of two limit switches – one for pipe cutter feedback and others for tilting the pipe

Tilting Unit Specification

Model Unit ETTU- 110 ETTU- 200 ETTU- 250 ETTU- 400 ETTU- 630
Pipe Range MM 16-110 20-200 50-250 90-400 110-630
Bed Type - Roller - Tilting Roller - Tilting Roller - Tilting Roller - Tilting Roller - Tilting
