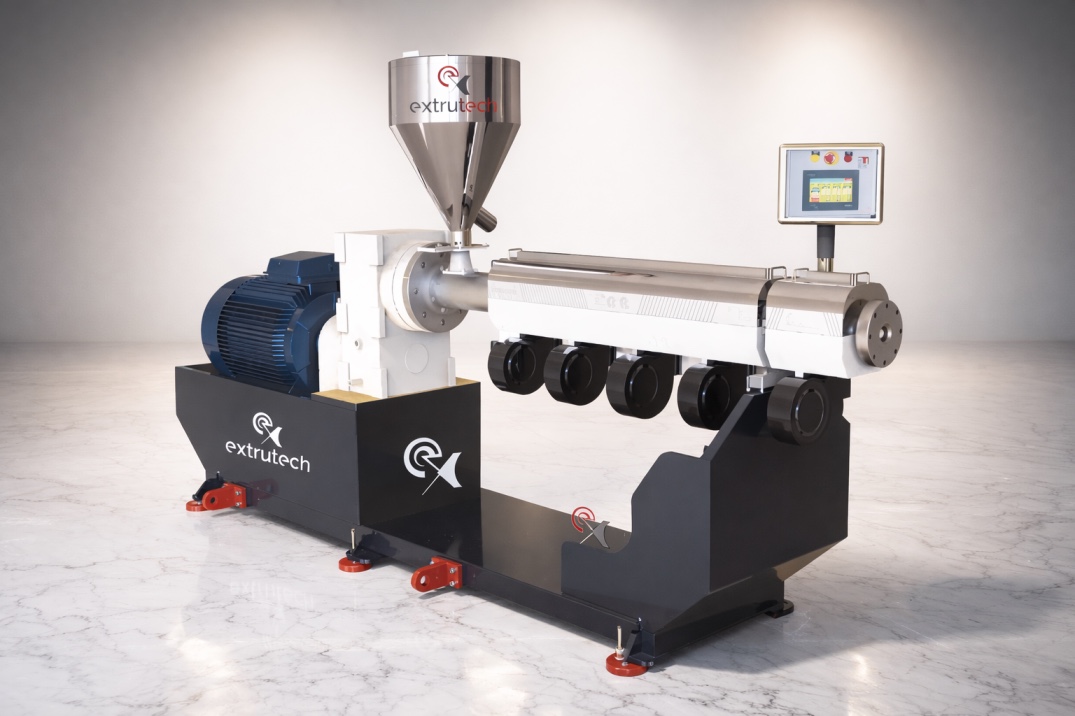

HDPE/PPR Pipe Extrusion Lines

Build the future with our high-performance HDPE/PPR Pipe Extrusion Lines, engineered for reliability and massive output. These systems are the backbone of modern infrastructure, consistently producing top-quality pipes for critical water, gas, and industrial applications. Dominate the market with unmatched efficiency, lower operational costs, and the power to produce up to 2200 kg/hr.

Key Applications

Versatile solutions for a wide range of industrial and infrastructure needs.

Domestic Sewage System

Potable Water Supply

Flood Irrigation

Sprinkler Irrigation

OFC Ducts

Surface & Rain Water

Air conditioning & Refrigeration

Core Features & Advantages

A combination of robust engineering and smart design for optimal performance.

Superior Efficiency

Designed with 40 L/D extruders for superior extrusion efficiency.

Maximum Productivity

Achieves excellent linear specific output for maximum productivity.

Minimal Waste
Minimizes waste with negligible start-up material
loss.
Low Power Consumption

Optimized for lower power consumption to reduce operational costs.

Chip-less Cutting
Chip-less cutting technology ensures clean and precise results.
Consistent Flow

Special grooved feed design ensures consistent material flow and performance.

Large Diameter Support
Supports downstream operations for pipes up to 630 mm in diameter.
}
User-Friendly Operation

User-friendly processing window simplifies operation and increases uptime.

Impressive Output
Delivers an impressive output capacity of up to 2200
kg/hr.
Easy Start-up

Easy start-up process enhances convenience and operational efficiency.

Technical Specifications

Model Unit ETHD 45-40 ETHD 60-40 ETHD 60-40 ETHD 75-40 ETHD 90-40 ETHD 120-40
Screw Diameter MM 45 60 60 75 90 120
Main Motor KW 132 200 250 315 370 560
L/D Ratio L/D 40:1 40:1 40:1 40:1 40:1 40:1
Output KG/HR 450-500 700-800 900-1000 1100-1200 1300-1400 2000-2200
Model Unit ETHD 45-37 ETHD 60-37 ETHD 60-37 ETHD 75-37 ETHD 90-37 ETHD 120-37
Screw Diameter MM 45 60 60 75 90 120
Main Motor KW 75 90 110 132 200 250
L/D Ratio L/D 37:1 37:1 37:1 37:1 37:1 37:1
Output KG/HR 220-240 300-330 380-400 500-550 650-700 800-850
